The GP series trailers, widely regarded as the toughest plant trailers in the industry, have an open rectangular steel framework, integral with the chassis. Maximum gross weight of the range is 3500kg. Models range from the smallest GP106 to the largest GP146. Trailers are offered with three tyre options and larger models are also available as tri-axle versions.

GP models are fitted with a tough resin-coated plywood platform. Various options are also available including factory fitted aluminium treadplate floor covering, bolt on ramp knife edge and 1.8m/6’ skids or ramp in place of the standard size of 1.2m/4’. All our plant trailer models are fitted with integrated ramp or skid supports. This standard feature ensures trailers are supported whilst being loaded without the need to deploy prop stands.

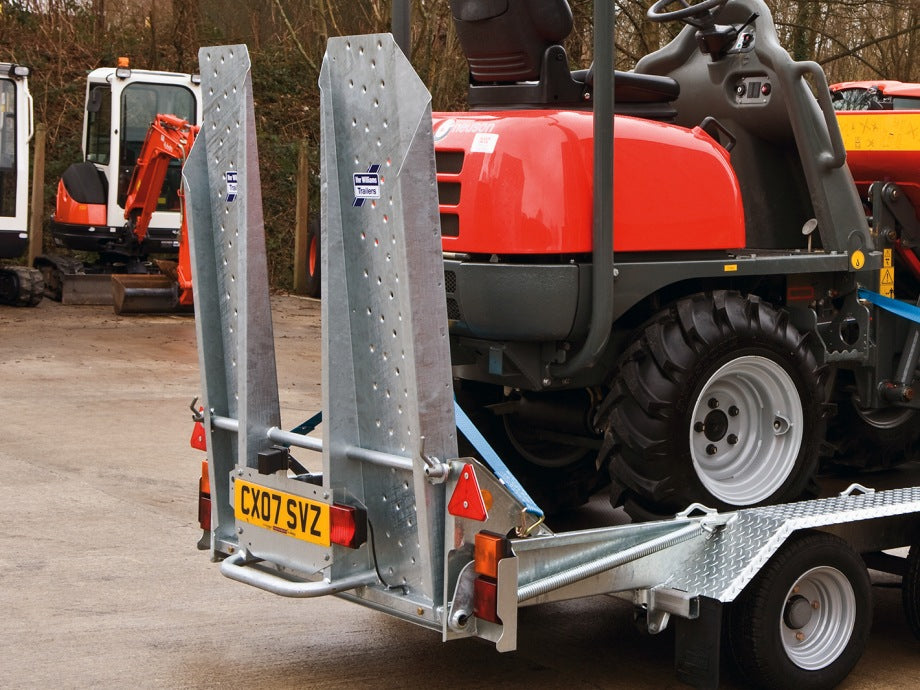

GP Plant Trailers are fitted with either a full width ramp or hinged skids as standard.

As well as 155/70R12C tyres as specified in the table below, GP models are available on the following tyre options: 195/60R12C, 175/75R16C and 6.50R16C (twin axle models only). Unladen weights for different tyre options may vary. Please check the Commercial brochure for further details.

GP trailers are also available as a high sided option which adds an additional 80kg to the unladen weight.

Low sided models are offered with either open or closed sides and have a bucket rest fitted as standard. High sided models come with filled in sides and an optional bucket rest. This option is ideally suited to users who require flexible usage from their trailer; a reliable plant trailer providing additional depth for use as a general duty trailer.


Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
GP106 Skids 155/70R12C 3500kg 705kg 3.06m/10′ 1.78m/5’10” 5.25m 2.30m
GP106 Ramp 155/70R12C 3500kg 720kg 3.06m/10′ 1.78m/5’10” 5.25m 2.30m
GP126 Skids 155/70R12C 3500kg 780kg 3.66m/12′ 1.78m/5’10” 5.85m 2.30m
GP126 Ramp 155/70R12C 3500kg 795kg 3.66m/12′ 1.78m/5’10” 5.85m 2.30m
GP126T Skids 155/70R12C 3500kg 890kg 3.66m/12′ 1.78m/5’10” 5.85m 2.30m
GP126T Ramp 155/70R12C 3500kg 905kg 3.66m/12′ 1.78m/5’10” 5.85m 2.30m
GP146T Skids 155/70R12C 3500kg 915kg 4.28m/14′ 1.78m/5’10” 6.40m 2.30m
GP146T Ramp 155/70R12C 3500kg 930kg 4.28m/14′ 1.78m/5’10” 6.47m 2.30m

Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
